EnviroBasin™
Oil and Grit Separator

Plug and Play
ETV Verified
Significant
cost savings

The innovative all-in-one precast water quality inlet is a catch basin installed to capture and treat stormwater runoff at the source, removing sediment and debris before it reaches local water bodies.

The EnviroBasin™ is a ETV certified device and has the equivalent performance of an Oil and Grit Separator.

EnviroBasin™ is simple to incorporate into any infrastructure project and supplied as a manufactured product. The integrated nature and benefits of the device reduce concrete, pipe work and maintenance,  conserving space and saving contractors time and money.

EnviroBasin™ is the ultimate pre-treatment solution for LID, rain gardens, tree cells and urban green infrastructure.

Available across Canada for your latest stormwater project.

Talk to one of our expert team to find out more.

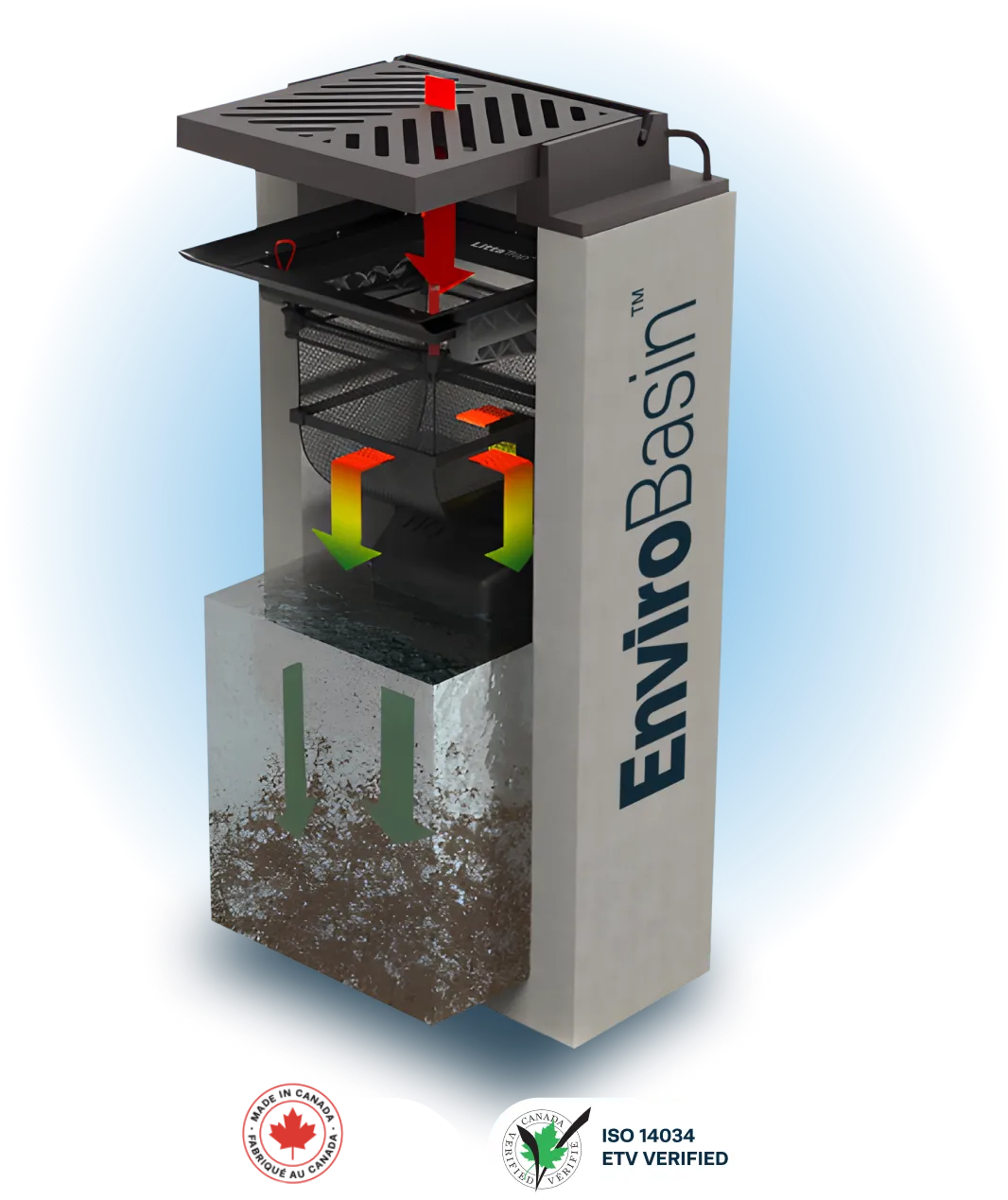

The EnviroBasin™ is a catch basin and separator housed in a single unit that collects, treats, and conveys stormwater into the stormwater network.

  • Alternative to catch basin or end of line OGS
  • Efficiently conveys peak stormwater flows without resuspension.
  • The EnviroBasin™ is available in a variety of sizes and configurations and is ideal
    pre treatment to green infrastructure and LID
  • The EnviroBasin™ is compact and can be applied in tight urban spaces where there are space constrains.

Available across Canada for your latest stormwater project.

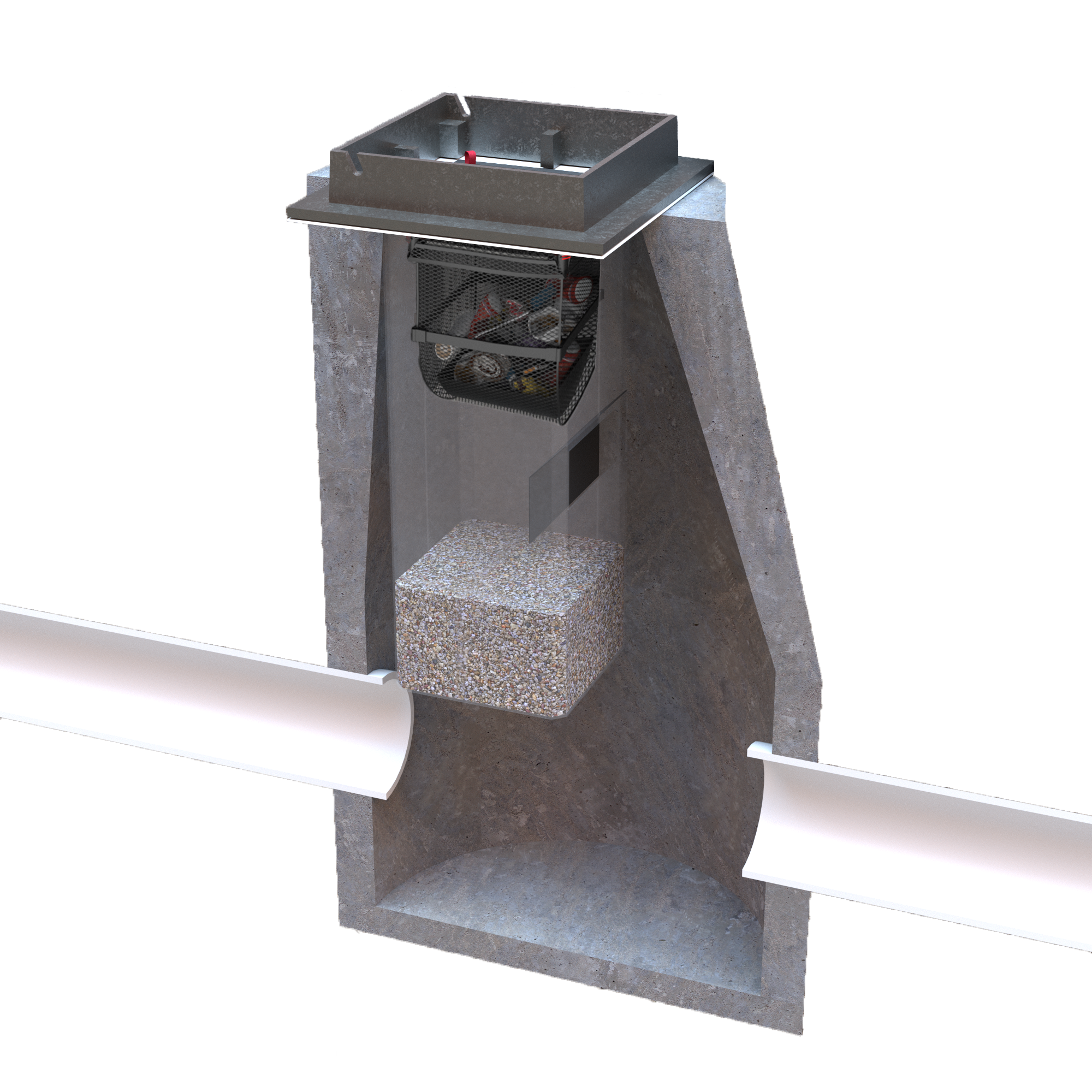

LittaTrap™ catch basin
insert for full capture of gross solids 5 mm in diameter and greater
Pre-cast catch basin

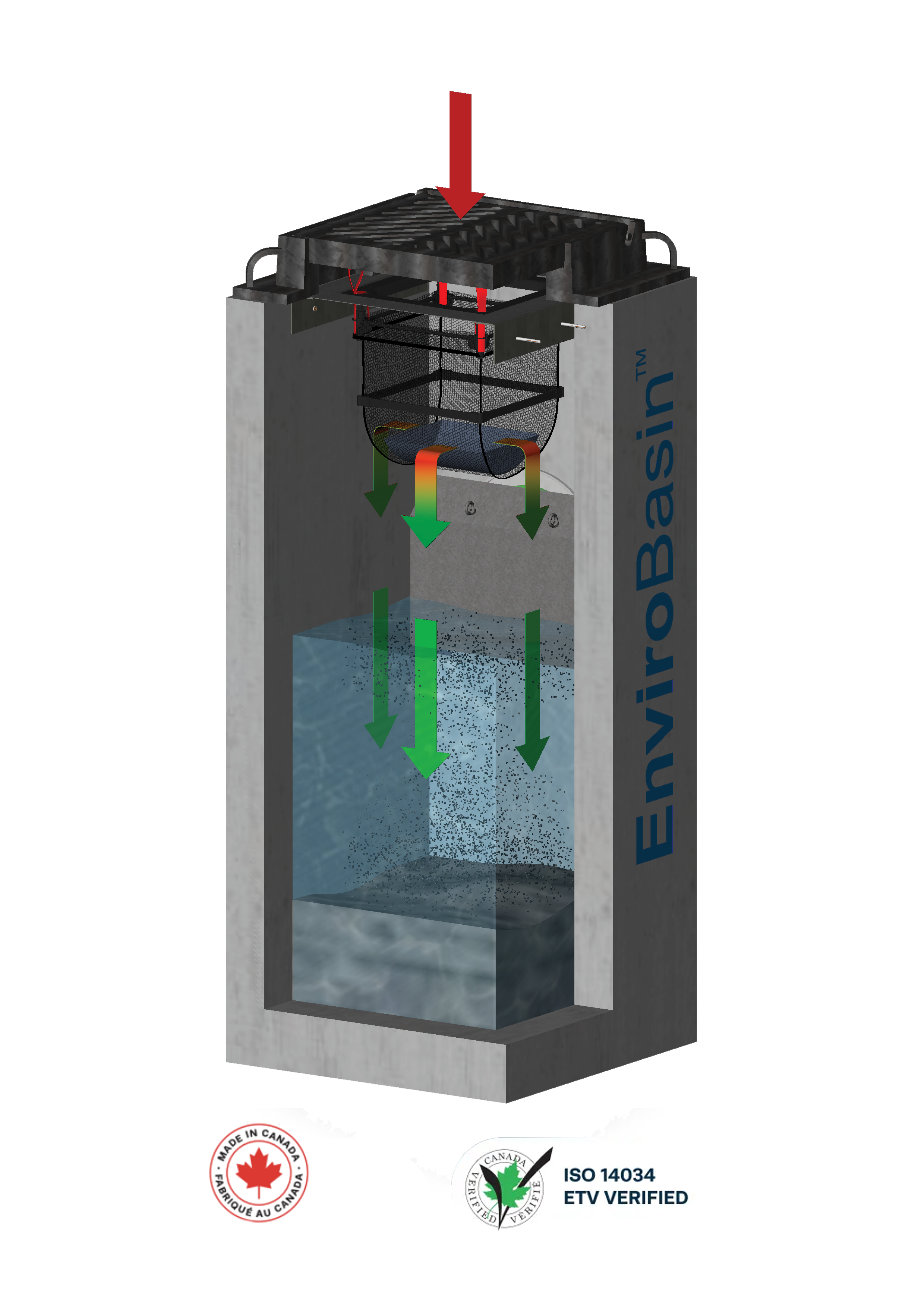

Energy dissipator dish
Submerged outlet baffle
Promote sedimentation
Features

Superior pollutant removal in a plug and play upstream solution

The EnviroBasin™ is the latest ISO 14034 ETV verified stormwater management technology, providing an upstream solution at the catch basin. Designed to target trash, TSS and sediment to ensure compliance with stormwater quality requirements, the EnviroBasin™ is the latest stormwater treatment solution from EnviroPod designed specifically for the Canadain market.

Plug and Play

All in one pre-manufactured device, available in a range of sizes and configurations for easy and cost effective installation

ETV verified

Trialled and verified in Canada to Canadian ISO 14034 ETV verified Oil and Git Separator standard

Easy maintenance with minimal cost and effort

Hand maintenance of basket with no confined space entry needed

Significant cost saving

Reduces the number of assets needing to be installed and fewer earthworks require, saving developer and landowner $$

Independently tested

Independently trialled and tested by Good Harbour Labs in Canada for the Canadian climate

Lower carbon footprint

Fewer assets and fewer earthworks lower the carbon footprint

Large storage volume

Enhanced storage sump capacity extends vactor truck maintenance requirements to once every two-to-three years decreasing maintenance frequency

Meets Regulatory Compliance

Meets and adheres to water quality objectives and regulations.

Free design and sizing service

EnviroPod™ offers a free design service where the cumulative performance of several EnviroBasin™’s can be modelled for a specific project based on local rainfall and treatment needs.

This service allows stormwater consultants to optimize the number and the location of EnviroBasin™’s for their projects.

Inlet Configurations

Standard

Combination

Twin

Ditch

Junction

Round

EnviroBasin™ models and sizes

Standard
LT6060
950
43
0.32
London Combination
LT6060 with seal kit
1330
43
0.45
Twin
LT6060
2300
43
0.78
Ditch
LT6060
950
43
0.32
Junction
LT6060
950
43
0.32
Round
Specification dependant on the catch basins size. Contact EnviroPod for more info.
*Estimated using ETV PSD modelled in a specification based on 6 hour 25mm storm depth. Note this is a guide only and site specific design may be required.
Case Studies

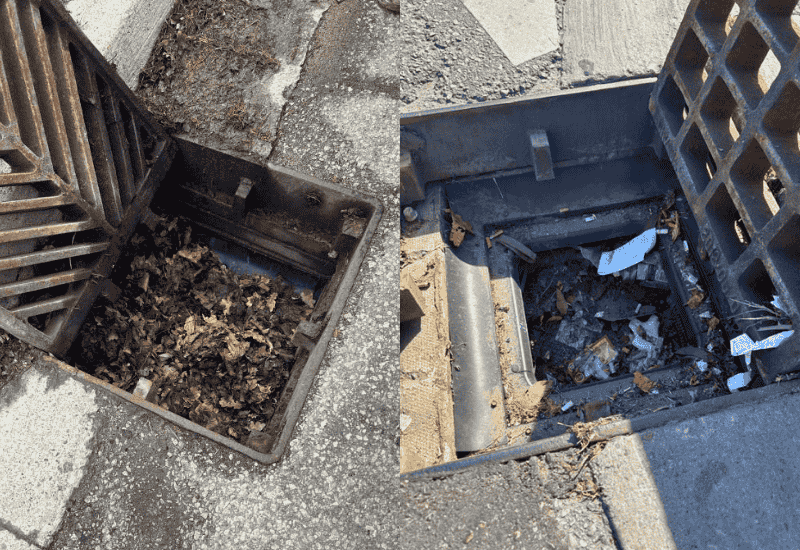

Toronto's laneways can be a significant contributor to the rubbish found in The Great Lakes
