LittaTrap™ EMMA
installation
hand or vactor truck.
cost savings

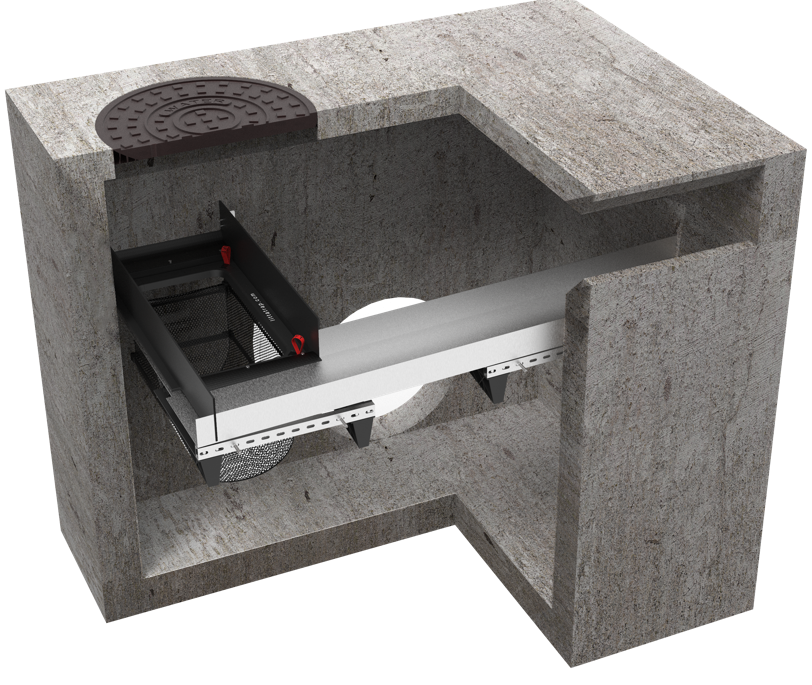

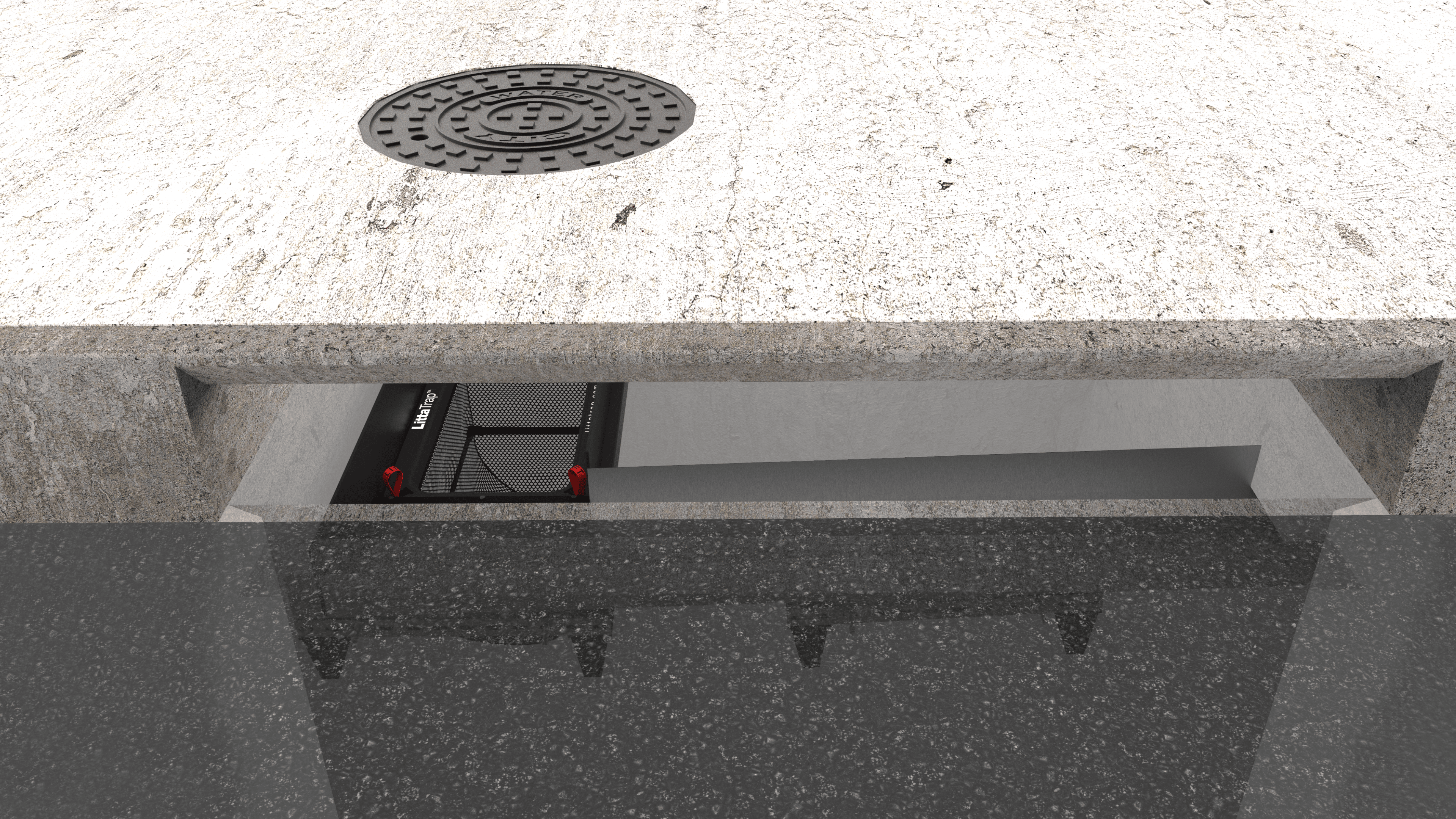

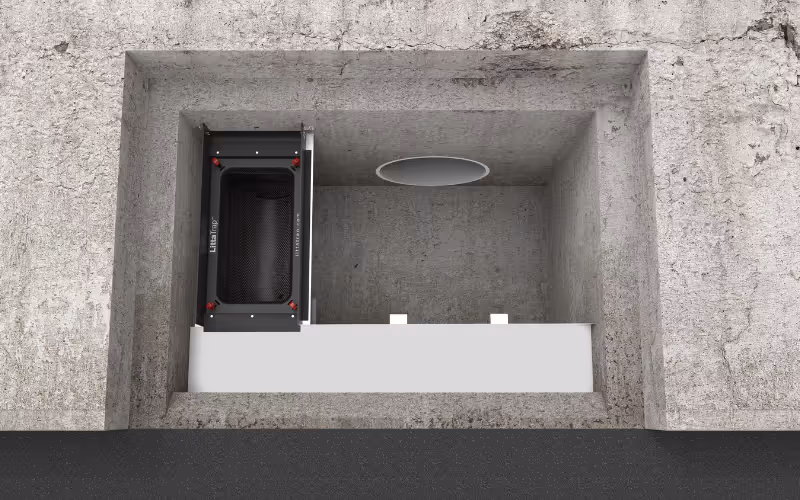

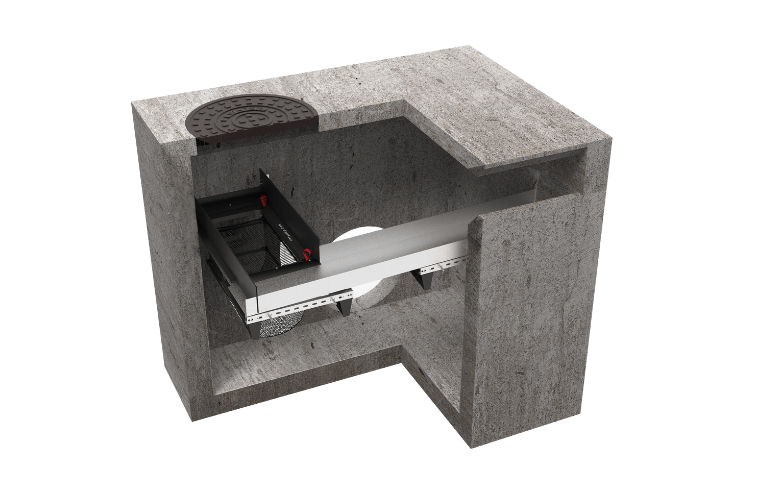

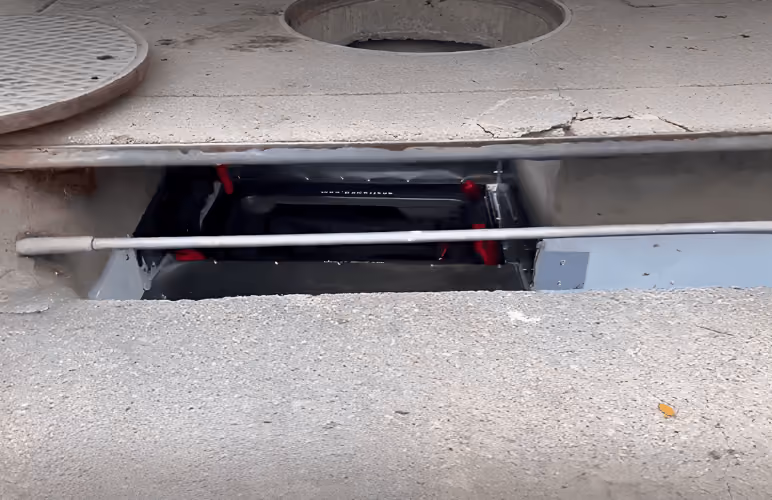

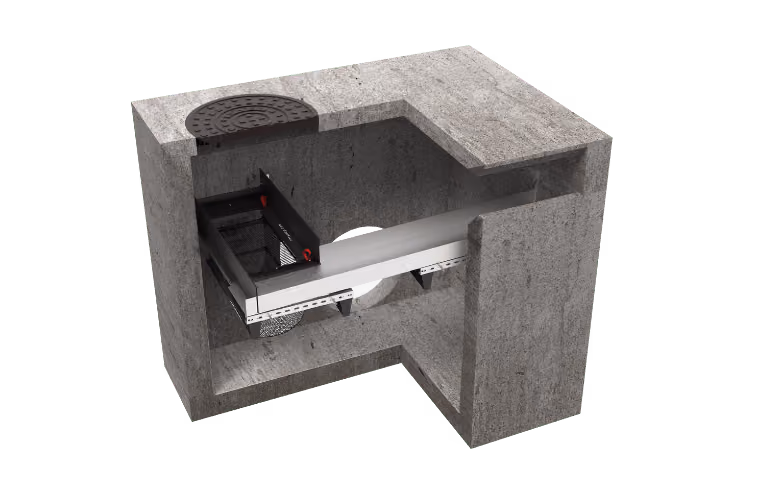

The EnviroPod™ LittaTrap™ EMMA (Easy Maintenance Manhole Access) Curb Inlet Filter model is designed to convey stormwater runoff from the curb inlet opening to the LittaTrap™ basket, with the basket positioned directly under the manhole access opening. This feature allows the maintenance crews to gain access to the LittaTrap basket from the surface and eliminates the need for confined space entry during routine maintenance service.
Designed for retrofit or new construction, the LittaTrap™ EMMA is compact, easy to install, and simple to maintain—making it a practical solution for municipalities, engineers, and contractors.
The EnviroPod™ LittaTrap™ EMMA configuration typically uses the standard 36" x 24" LittaTrap™ and the EMMA adaptor kit. Other-sized LittaTraps can be used based on project requirements.

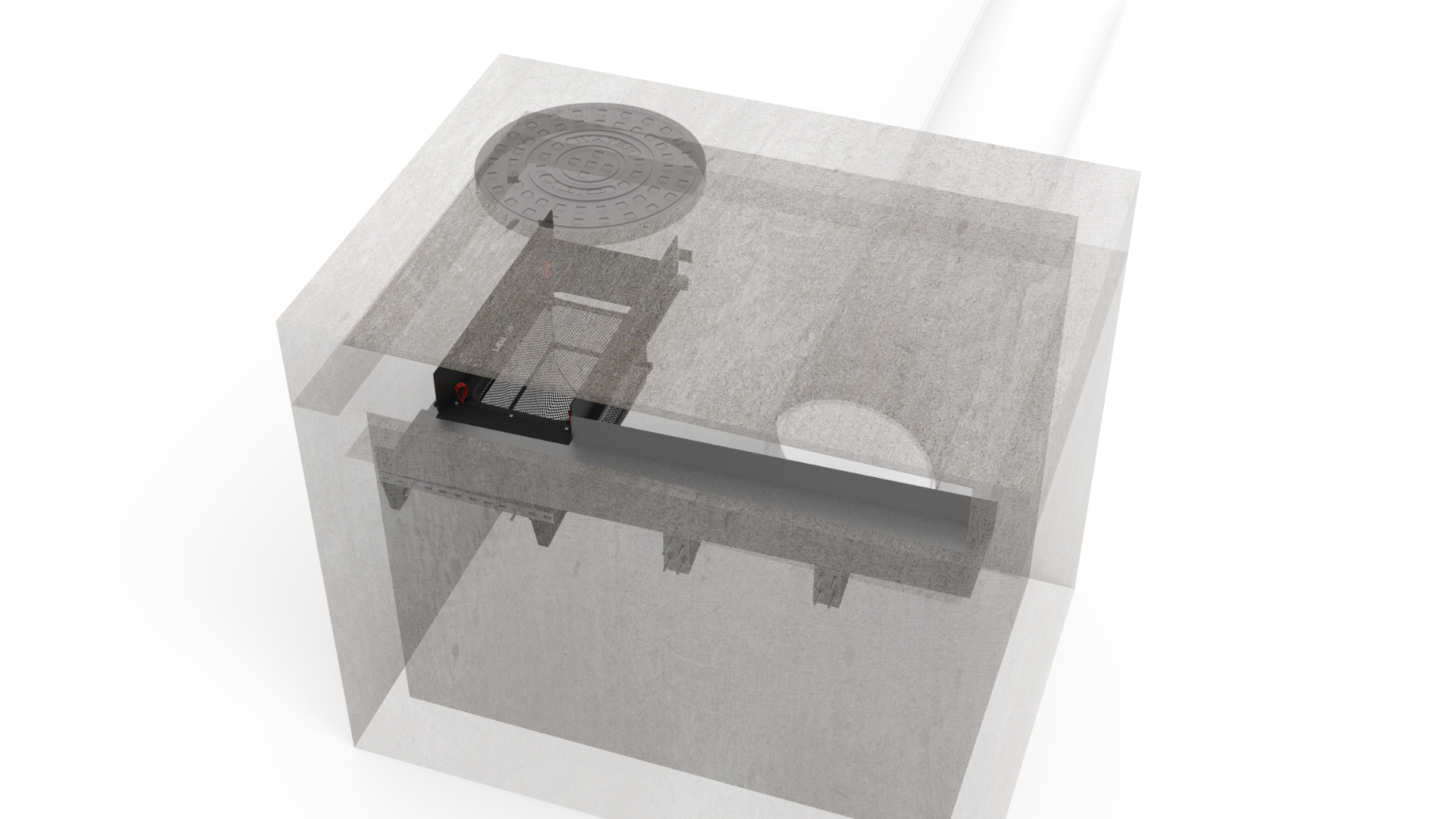

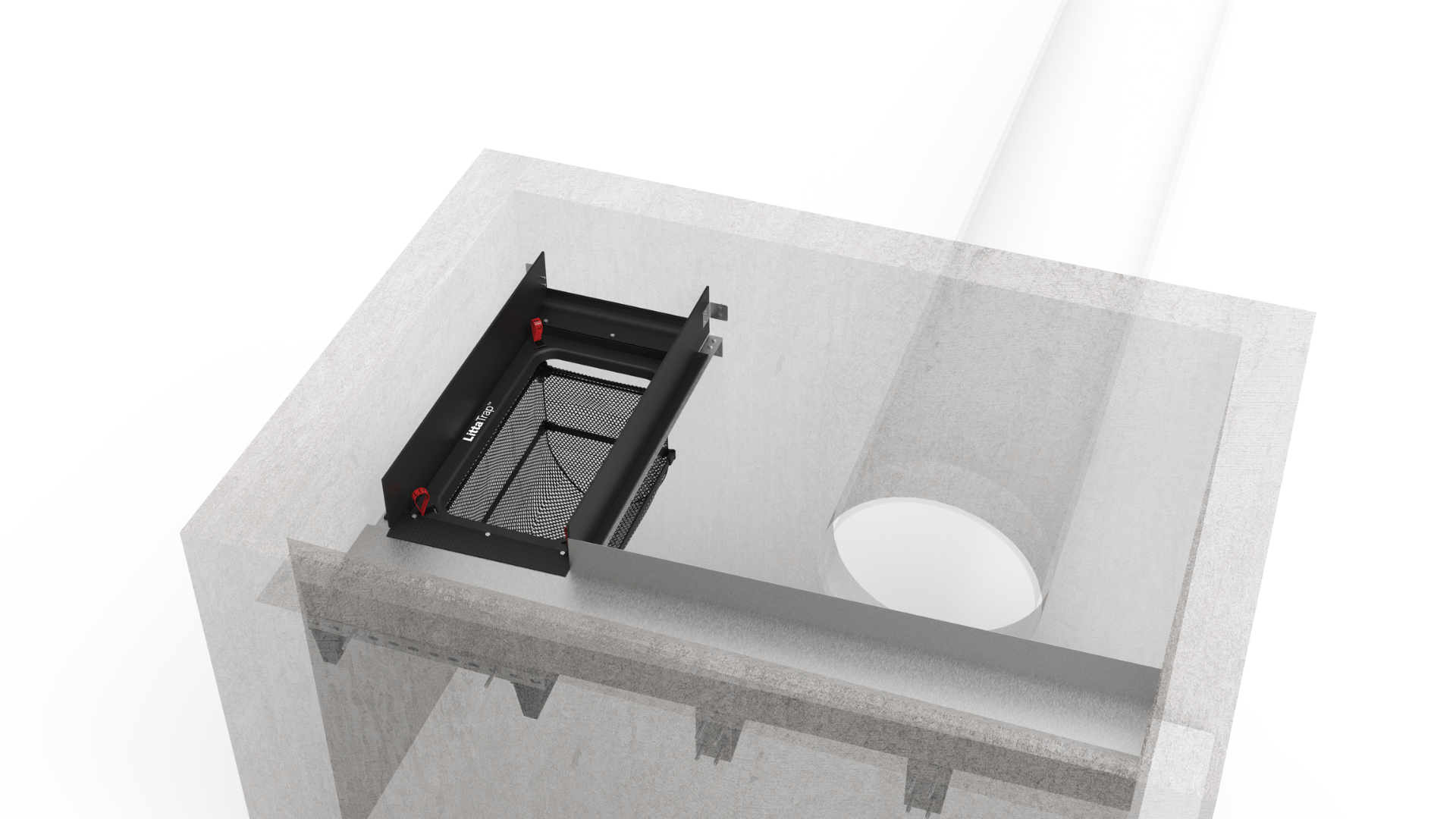

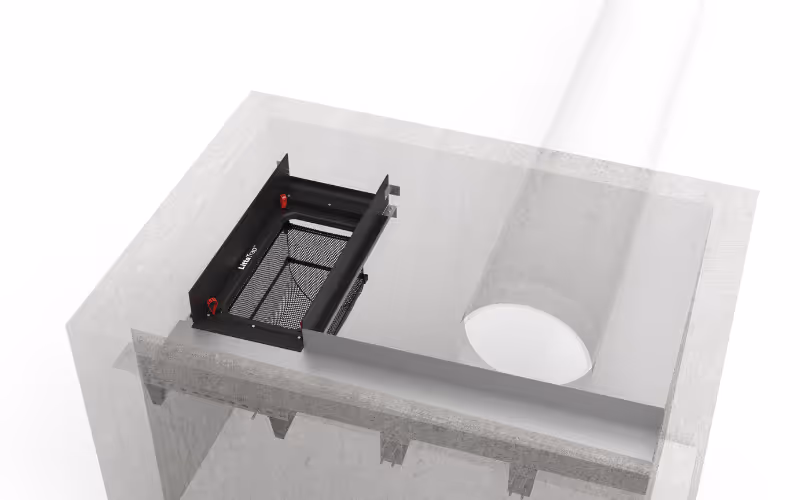

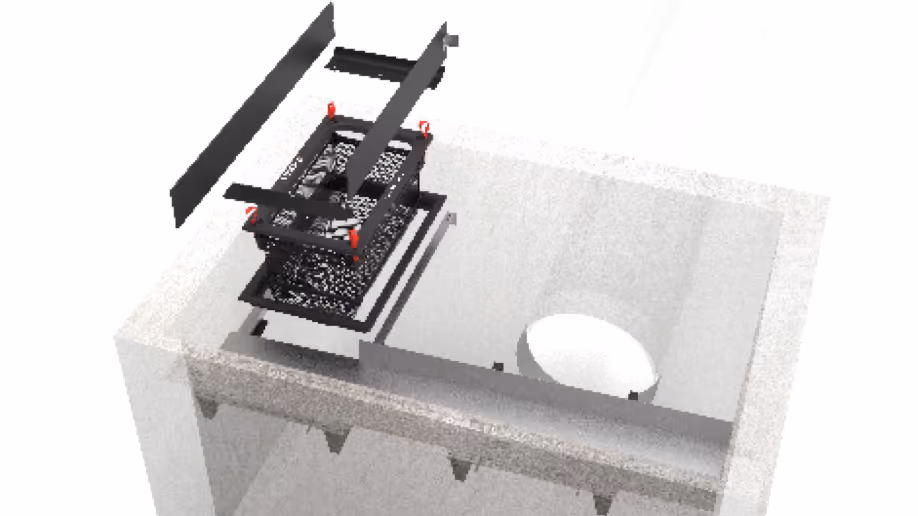

The EMMA Kit consists of a support bracket, struts and an adjustable trough system to convey stormwater flows and trash into the basket. The kit is adjustable to suit the maintenance hole in the catch basin's centre, side or front. The trough conveys only the design flow to the basket, placing the system offline in peak storm events.
The EMMA configuration allows full access to the catch basin for other maintenance activities without removal of the system. The EMMA kit comes in four standard sizes with extension kits available, allowing easy retrofit of any curb entry catch basin for trash capture.
.avif)
Proven Performance
Independently trialled and tested by municipalities and with over 65,000 units installed worldwide the EnviroPod™ LittaTrap™ is the most specified filter insert available today.
Modular & Adjustable Design
Because of its modular design, it is adaptable to the curb entry catch basin. Often, the most practical solution for retrofits as it requires no alterations to the drainage network.
Easy Maintenance
Designed for simple & easy maintenance.

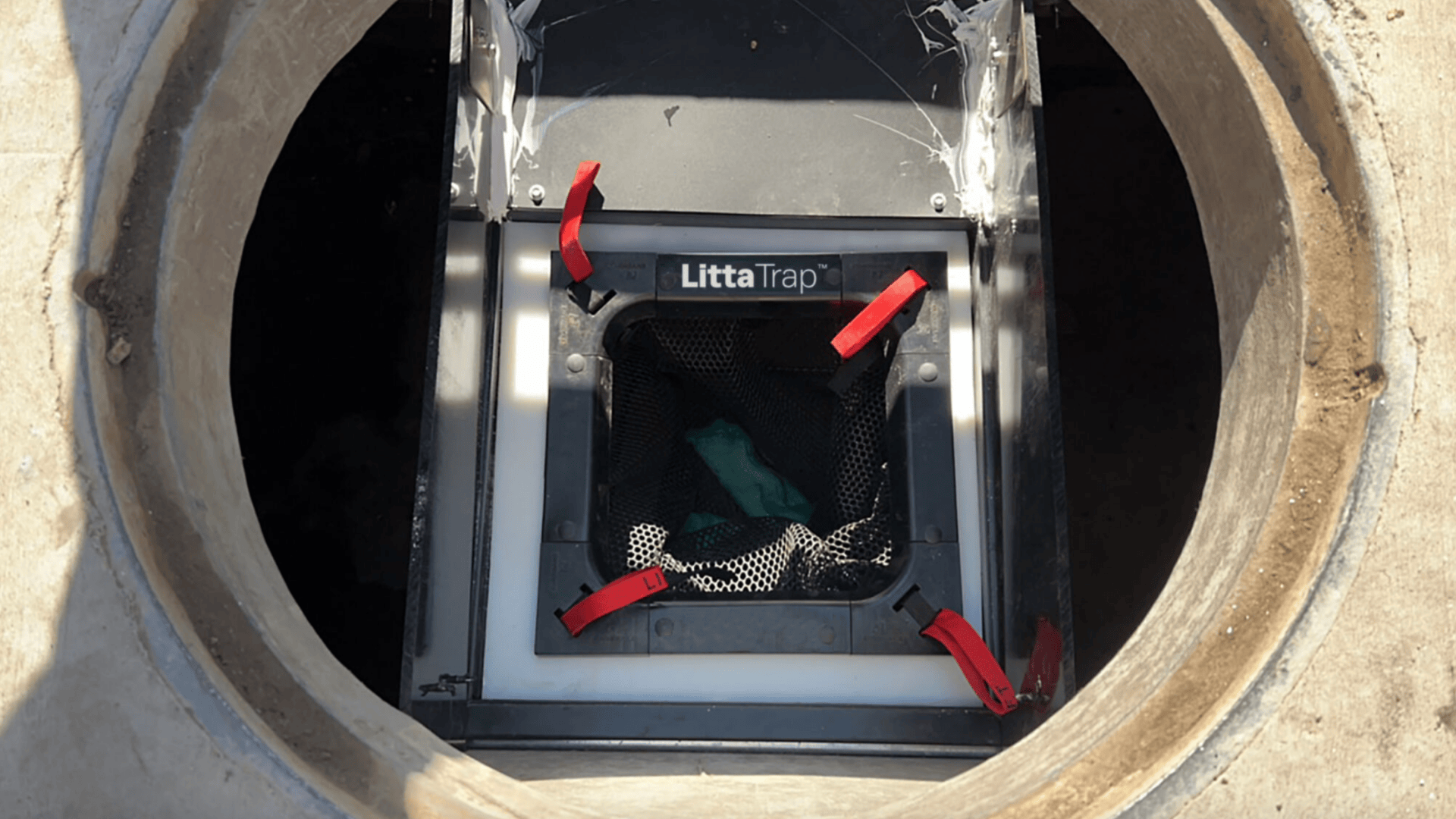

Maintenance crews can gain access to the LittaTrap™ basket from the surface.
No confined space entry during the routine maintenance service.
.avif)
Easy Installation
Modular and adaptable design to suit any curb entry catch basin. This makes installation easier as it can adapt as needed for optimal design.
Large Capacity
The LittaTrap™ basket ™ has a high screen area and storage volume, allowing the system to have a high hydraulic
conductivity.

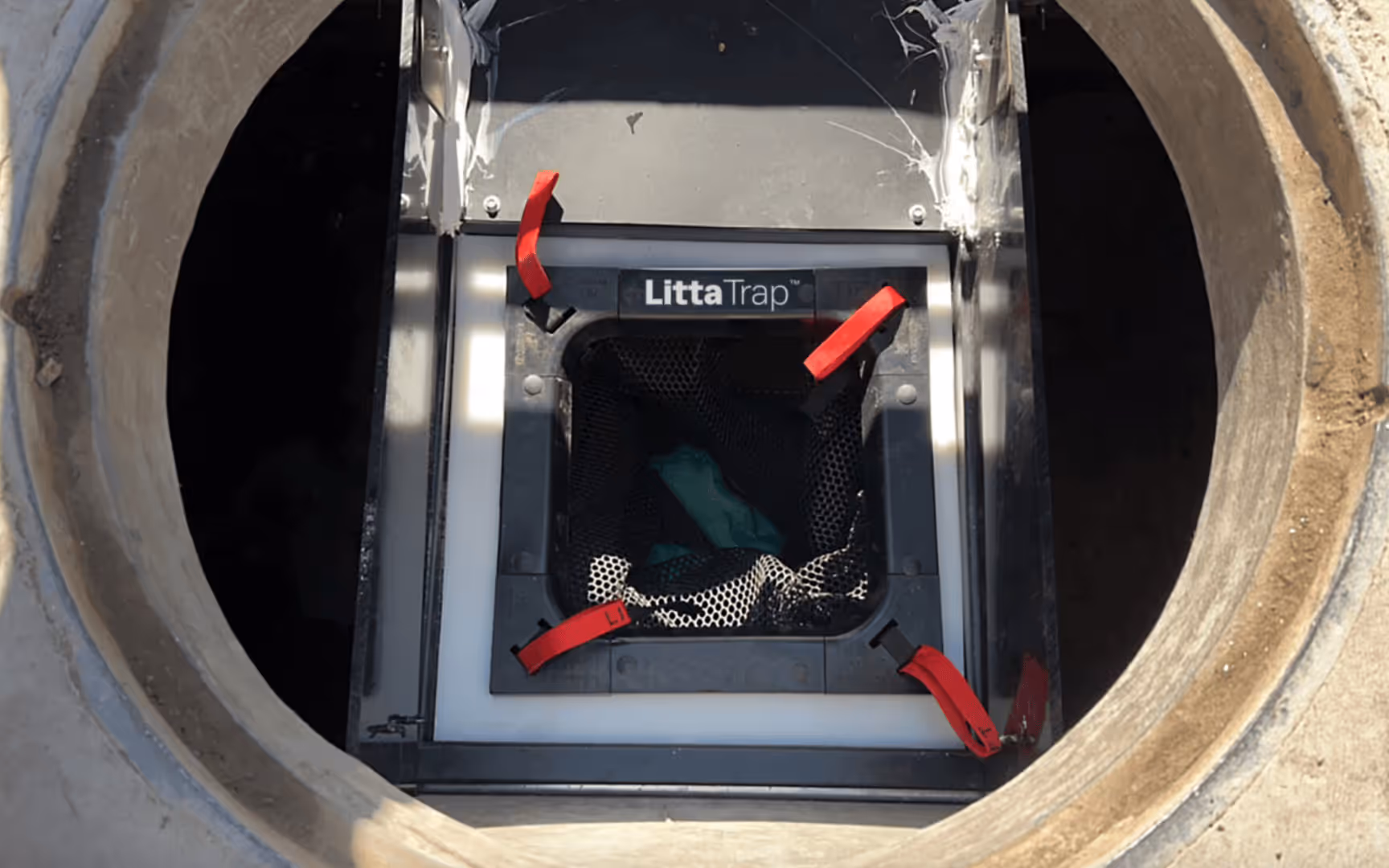

Full Access
With the LittaTrap™ directly under the manhole, you have full access to the LittaTrap™.
High Flow
Continues to provide trash capture during high-flow rain events. As the system is online, the basket and overflow design provides an unimpeded secondary flow path. This ensures the system does not compromise the hydraulic capacity of the catch basin it is installed into.
Simple Installation
The LittaTrap™ EMMA is designed to be simply installed into the catch basin. The modular design allows for flexibility with the installation and has a number of different configurations.
Measure & assess catch basin
Before installing a LittaTrap™, the catch basin needs to be assessed and measured to gauge suitability. Follow the step-by-step guide to ensure the catch basin is measured accurately.
Attach brackets & install Filterbox
Follow guidelines in instruction guides and video.
Insert Filterbag & performance liner if required
Follow guidelines in instruction guides and video.
Maintenance made easy

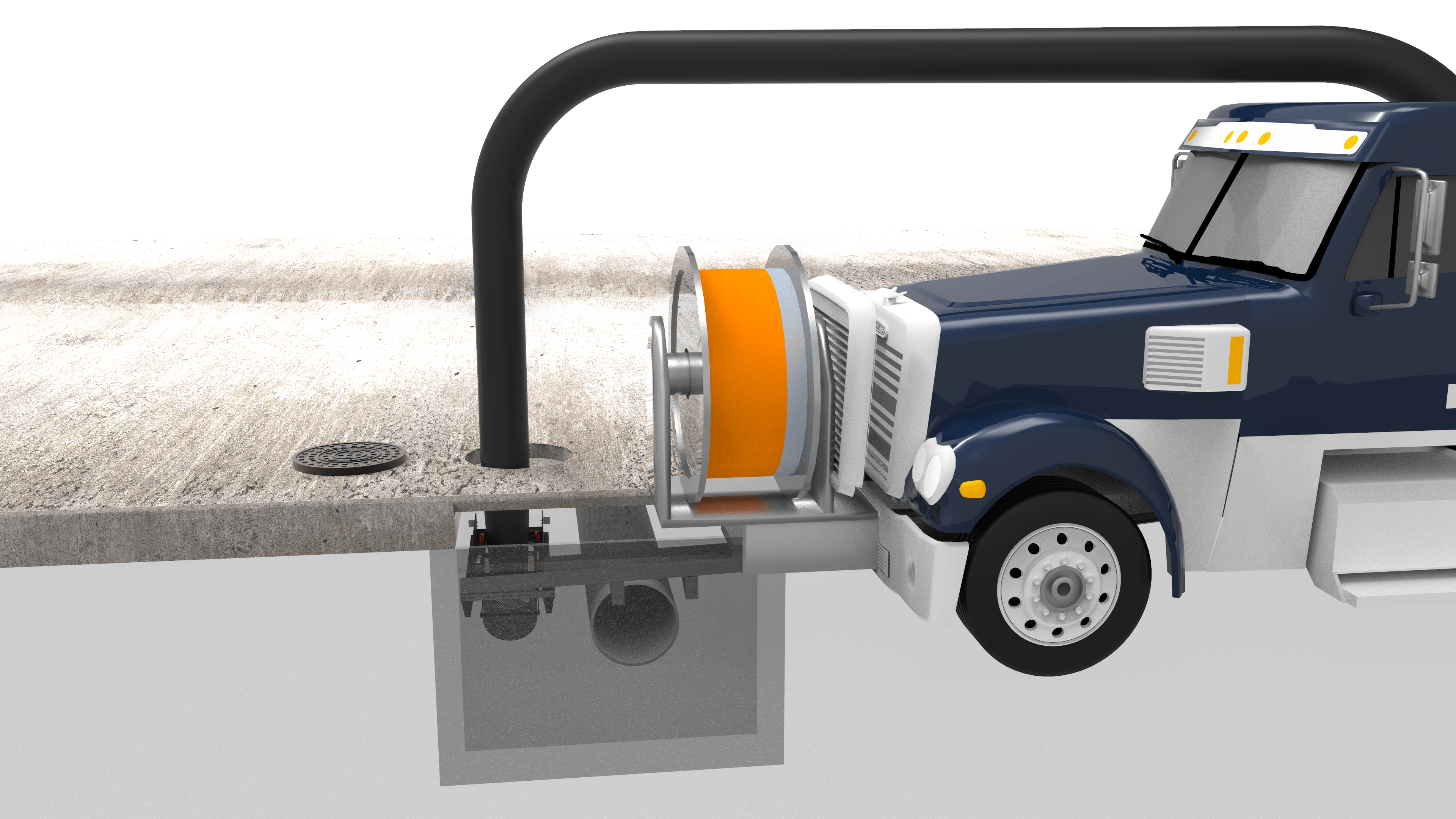

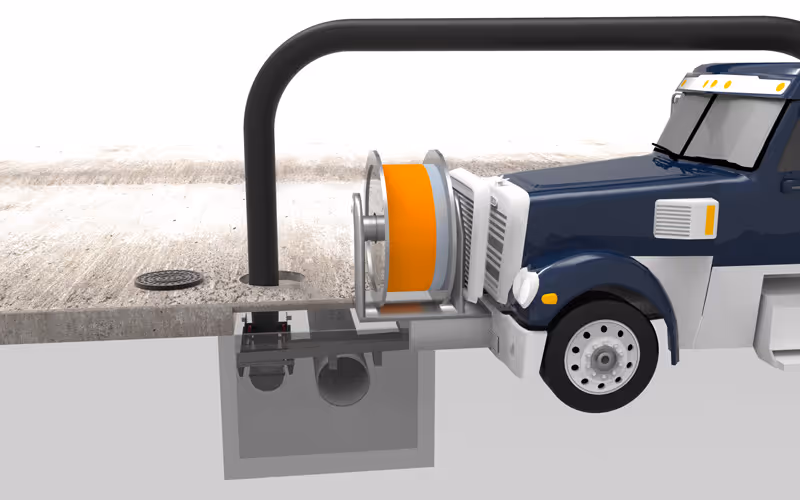

Lightweight and flexible for easy maintenance. The LittaTrap™ EMMA is designed to be easily maintained by hand or vactor truck.
.png)
Technical documentation & drawings
Download brochures, install manuals and technical documentation.
