TrenchPod™
Trench Drain Filter
Design
cost savings
The EnviroPod™ TrenchPod™ Trench Drain combines proven stormwater treatment technology with a modular trench drain design. Available with a 5 mm full trash capture mesh filter liner available which meets the California State Water Board Full Trash Capture (FTC) requirements, preventing trash and gross pollutants from entering downstream stormwater systems.
Designed for retrofit or new construction, the TrenchPod™ Trench Drain is compact, easy to install, and simple to maintain – making it a practical solution for municipalities, engineers, and contractors.

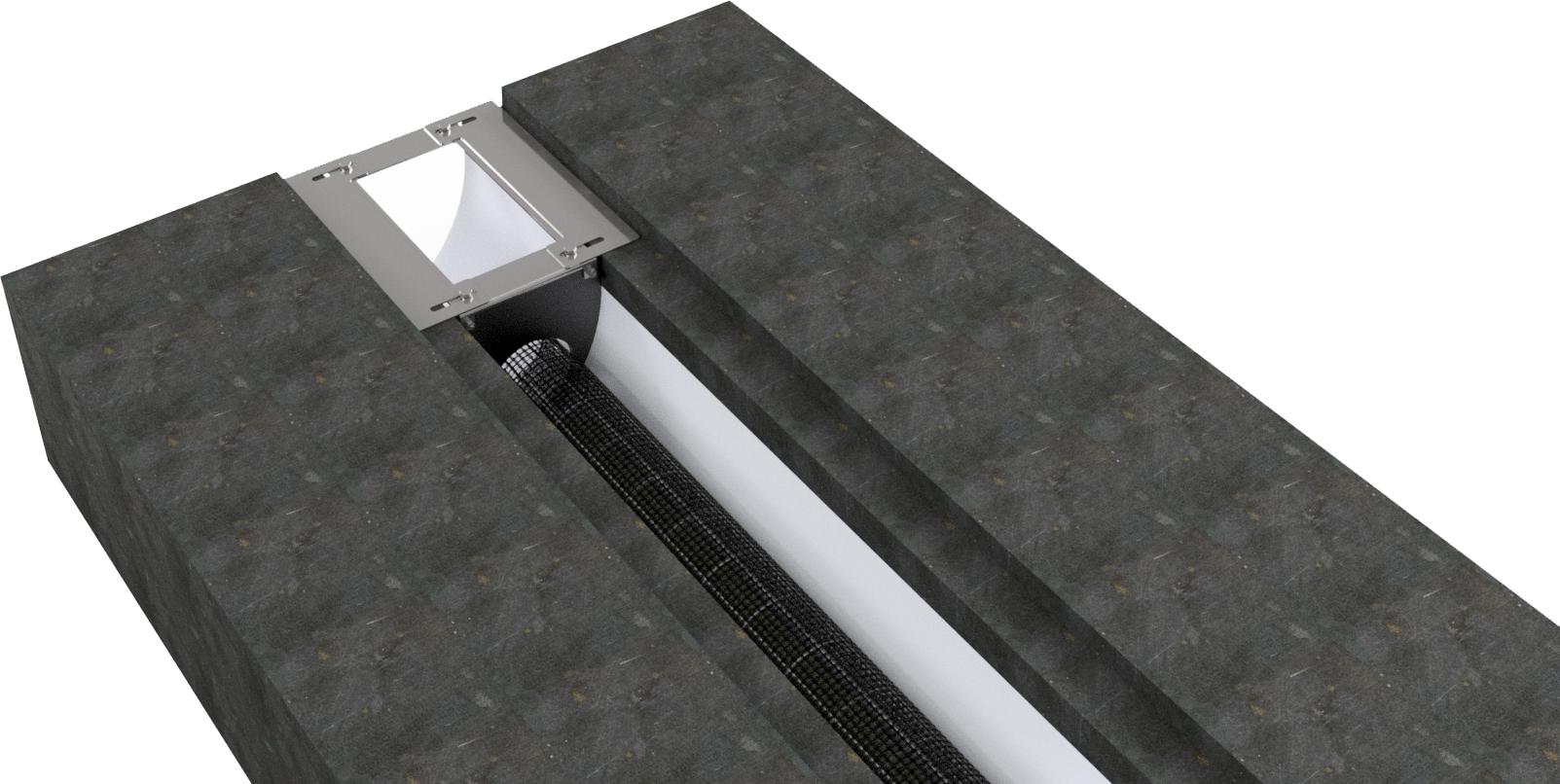

The TrenchPod™ Trench Drain Filter is a modular, stainless-steel and HDPE filtration system designed for integration with trench drains ranging from 4.5–12” (112–300 mm) wide and depths up to 16” (400 mm). Standard 3’ segments can be connected for longer runs, with custom units available for non-standard dimensions.
Each unit incorporates a hydraulically engineered bypass to maintain full trench capacity during peak flow events. Maintenance is straightforward: filters can be lifted by hand or serviced by vacuum truck, and liners or sorbent pouches can be quickly replaced on-site.
The TrenchPod™ is designed for long service life and backed by an 8-year limited structural warranty.
Proven Performance Across Urban, Commercial, and Industrial Sites.
.avif)
Municipal Stormwater Systems & Retrofit Compliance Projects
Customisable by using different liners & accessories to meet site-specific or municipal requirements.
Commercial and Industrial Developments
Used for commercial, industrial areas, footpaths and more.
High-traffic surfaces
Urban plazas, loading bays, maintenance yards and roadways.
Proven stormwater treatment technology in a modular trench drain design.
Full Trash Capture Liner
Available with a 5 mm full trash capture mesh filter liner available which meets the California State Water Board FTC
definition.
Optional liners are available for fine
sediment, nurdles, and hydrocarbons.
Compact & Modular Design
Fits standard trench widths
4.5 - 12" (112 - 300 mm)
Depth compatibility
4.5 - 16" (112 - 400 mm)
Standard 3' length segments; custom
units available on request.
Simple & Safe Maintenance
Inspection recommended every
6–12 months, depending on
pollutant load.
The filter element can be lifted out
by hand or serviced using a vacuum
extraction.
Liners and sorbent pouches are
quick to replace on-site.
Easy Installation
Lightweight filter element with liner
drops directly into the trench channel.
No excavation or hydraulic
modifications required.
Simple Installation
The TrenchPod™ Trench Drain is compact, easy to install, and simple to maintain.
Measure & Assess Trench Drain
- Before installing a TrenchPod™, the trench grates and clear the trench of debris (leaves, trash and dirt). Lay out all materials next to the trench.
- Measure the profile of the trench drain using a piece of paper.
- Cut out the piece of paper to fit the measured trench drain profile and outline on the HDPE end plate.
- Using a jigsaw, cut out the plastic end plate to fit the trench drain, ensuring the hole for the cage has a minimum 3/8" (10 mm) gap from the bottom of the plate, and that the plate is 1/4" shorter than the trench drain.
Install TrenchPod™
- Slide the filter bag on the cage so the open end is on the side that goes into the end plate. Slide the cage and filter bag into the HDPE plate and screw them in place.
- Place on the locating plates, making sure they sit under the grate and are attached using the dome headed bolts provided.
- Replace the grate and remove any leftover tools or materials.
Maintenance made easy
INSPECTION FREQUENCY:
- Monthly during rainy seasons.
- Quarterly during dry seasons.
- After large rain events or spills.
01 Lift
Remove the trench grates.
02 Tip
Vacuum out the captured debris from the filter.
03 Reuse
Rinse the filter bag and wash it with clean water. Reinstall components and replace grates. Replace LavaSorb™ annually or as needed. Replace filte rbage if torn or excessively clogged.
