LittaTrapCatch Basin Insert


The Enviropod LittaTrap™ Inlet Filter is the ideal catch basin insert for managing stormwater and meeting trash capture regulations. Engineered to be robust and reliable, it has been designed to fit a range of catch basin structures, and can also be customized to meet site-specific pollutant removal requirements.

This modular catch basin filter is highly engineered and offers an 8-year warranty, ensuring long-term performance and reliability.


Features


The patented design reduces the energy of inflowing water for the full capture of gross solids. The novel design maintains catch basin hydraulic conductivity and allows easy maintenance of the basket when full and also in the sump below.


- Storage of captured dry gross solids
- High capacity pollutant storage
- Superior pollutant removal with high hydraulic efficiency
- Design flexibility
- Installing a LittaTrap can reduce the risk of stormwater infrastructure blocking further   downstream or act as pre-treatment for   other treatment devices.



.

Stop plastic leaving your site

Capture and retain all plastic and other trash over 5mm including cigarette butts

Low cost solution

Lowest cost treatment available No construction means low capital costs

Simple & easy maintenance

The LittaTrap has  improved H & S with the inclusion of four lifting handles on the basket - designed for safety. The lightweight basket is designed to be lifted by hand.

Independently tested

Independently trialled and tested by city councils throughout Australia and New Zealand and with the installation of over 50,000 units worldwide including North America, the Enviropod LittaTrap is the most specified and installed pit insert in Australasia.

(Independently tested by Auckland University, NZTA, Auckland Council, Tauranga City Council, University of South Australia.)

Easy to install & retrofit

Simple step-by-step install.
The new support bracket uses a cantilever mechanism to enable the system to be mounted from one gully pit wall; halving installation time.

Target site-specific pollutants

Using passive screening , the LittaTrap can be customised to meet site-specific requirements with interchangeable performance liners ranging from 100 to 1000+ micron pore size

View Performance Liners »

Enhanced particle capture with performance liners

The performance of the LittaTrap can be enhanced by the use of liners. The liners are easily attached to the LittaTrap basket and allow the capture of finer particles.

View stormwater filter liners
Catch Basin Insert Enviropod LittaTrap

Inlet Configurations

LIttaTrap drain grate with drain filter
Grate Inlet Filter

Grate Inlet

The innovative design of the LittaTrap allows for installation across a wide range of grate inlets. No two catch basins are the same which makes other catch basin inserts difficult or expensive to install. The LittaTrap has standard sizes and flexibility using simple to use seal kits allows for professional and high performance installations.

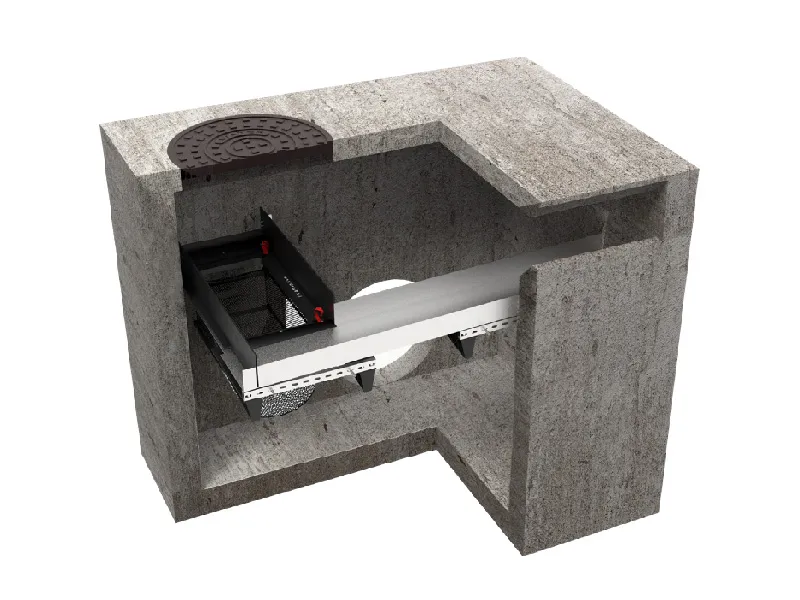

Curb inlet filter and trash capture device
Curb inlet filter

Curb Inlet High Storage Capacity

The advantage of using a LittaTrap is the modular design. This allows for standard units unit any curb inlet infrastructure, despite the field constraints.

Manhole inlet filter
Manhole inlet filter

Manhole Inlet

The LittaTrap can be installed easily within a range of round stormwater infrastructure. We use a bracket which is as easy to install as the LittaTrap itself. The round seal kits can then be used to finish off the install that looks professional and provides optimal flow of water into the system

Technical Documentation

Measuring a catch basin to install a LittaTrap

Before installing a LittaTrap, the catch basin needs to be assessed and measured to gauge suitability. Follow the step-by-step guide to ensure the catch basin is measured accurately..

Installation

Traffic control must be well planned when installing or inspecting a LittaTrap. All standard rules and regulations governing Traffic Control and Health & Safety while working on the road must be followed at all times. All potential hazards must be identified and control methods put in place prior to undertaking any activity.

Step-by-Step Guide

Ensure to follow the instructions when installing a LittaTrap.

Download Catch Basin Insert Installation Guide

Easy Maintenance

The LittaTrap is designed to be emptied by hand so it can be easily cleaned by site owners or maintenance crew without the need for vacuum inductor trucks ( unless this is how you chose to maintain) or heavy lifting equipment. As most catch basins can be accessed from ground level, there is no requirement for confined space entry, reducing maintenance costs.

Ocean Pollution Solutions Enviropod LittaTrap

1. Lift

Lift basket out of catch basin using handles

Tip LittaTrap

2. Tip

Tip the contents out of basket into suitable receptacle for contents

Replace LittaTrap

3. Reuse

Place the basket securely back into surrounding frame, ensuring a good seal

LittaTrap filters should be inspected periodically to determine maintenance frequency. The frequency of maintenance services should be reviewed at the completion of each clean and modified if pollutant loadings deem this necessary. At the required maintenance interval the contaminants need to be removed from the filterbags and disposed of appropriately. The maintenance crew is responsible for the disposal of debris in accordance with all applicable regulations and is responsible for following all Health and Safety requirements.

LittaTrap maintenance with Vactor Truck

LittaTrap maintenance with J-Hooks

Case StudY

Stopping plastic pellets at their source. La Porte, Texas
Plastic manufacturer prevents 190,000 nurdles from reaching the Gulf of Mexico

Customer

Plastic Manufacturer

Applications

Manufacturing

View Case Study
Case StudY
A pilot project in a plastic manufacturing facility looked at the effectiveness of the LittaTrap in capturing pre-production plastic pellets.
Customer

Plastic Manufacturing

Applications

Manufacturing

View Case Study
Case StudY
By installing 30 x LittaTraps. a total of 248.84kg of litter and debris was prevented from entering the Atlantic Ocean from the City of St Johns.
Customer

City of St Johns

Applications

Public Works

View Case Study
Case StudY
"I would strongly recommend Enviropod to anyone who needs help with achieving compliance with the Trash Amendments.” Jim Merid, Environmental Services Manager
Customer

City of Huntingdon Beach

Applications

Public Works

View Case Study
Case StudY
Wahieke Island Litter Hotspot study. Assessment of the LittaTrap in 34 locations in 12-month pilot study identifying trash hotspots.
Customer

Auckland Council

Applications

Public Works

View Case Study
View all Case Studies »
