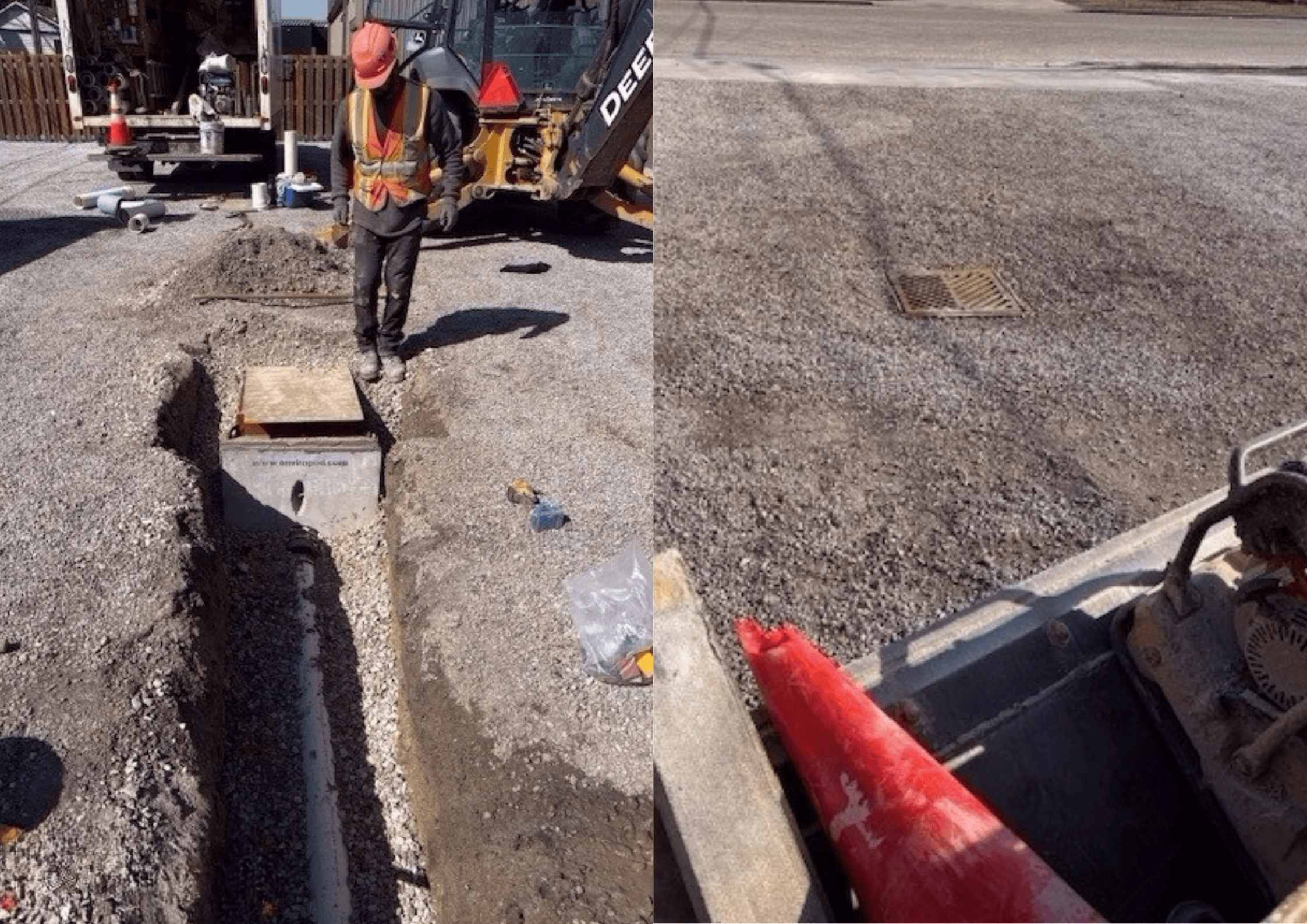

EnviroBasin™ - Windsor, Ontario Case Study

LOCATION: Windsor, Ontario

‍CATCHMENT AREA: 0.078 ha

‍

PROJECT CHALLENGE:‍

Traditional end-of-pipe oil and grit separators (OGS) require all stormwater flows, regardless of pollutant concentration, to pass through a single downstream device. This often leads to oversized infrastructure, higher capital costs, and accelerated maintenance requirements, particularly when exposed to high volumes of gross pollutants.
‍

The project required an efficient, compliant, and cost-effective solution that could deliver could deliver 80% TSS removal of the ETV (20-1000μm) PSD of water quality performance without using a downstream OGS in addition to the catch basins already required on the project.

‍

SOLUTION:‍

The EnviroBasin™ is an advanced water quality inlet that is ETV certified to Oil & Grit Separator (OGS) performance with the use of flow modifying components and the proven power of LittaTrap™ inlet filter. This all-in-one system incorporates a modified LittaTrap inlet filter, in addition to other flow modifying components, to capture 100% of gross pollutants and enhance the capture of sediment and hydrocarbons directly at the source.

ETV-verified and compliant with Canadian Oil and Grit Separator standards, the EnviroBasin™ replaces conventional catch basins while delivering significantly improved water quality performance.

‍

‍
DESIGN ADVANTAGES:‍

• At-Source Treatment: Enables targeted sizing for high-pollutant “hot spot” areas while excluding low-pollutant sources such as roof runoff and rear lots.
  ‍
• Infrastructure Reduction: Eliminates the need for downstream OGS units, resulting in fewer pipes, manholes, and stormwater structures.
  ‍
• Cost Efficiency: Avoids oversizing and reduces both capital and long-term maintenance costs.
  ‍
• High Performance: Achieves over 80% ETV (20- 1000μm) TSS removal and captures 90% of runoff volume at the inlet.

‍

‍

THE ENVIROBASIN™ IS AN IDEAL PRE-TREATMENT SOLUTION FOR:‍

• Low Impact Development (LID) systems
  ‍
• Infiltration practices
  ‍
• Rain gardens
  ‍
• Tree cells
  ‍
• Urban green infrastructure

By capturing 100% of gross pollutants before runoff reaches the sump or downstream systems, the EnviroBasin significantly extends the sump vactor maintenance intervals and preserves the performance of downstream infiltration-based assets that are otherwise prone to clogging from trash and coarse sediment.

‍

‍

CONCLUSION:‍

The Windsor EnviroBasin™ installation demonstrates how at-source stormwater treatment can outperform traditional end-of-pipe approaches such as OGS, by delivering over 80% ETV (20-1000μm) TSS removal and 100% trash capture all in one, reducing infrastructure complexity, costs, and supporting long-term sustainability goals. With verified performance and flexible design application, the EnviroBasin™ sets a new benchmark for modern stormwater management.

‍
